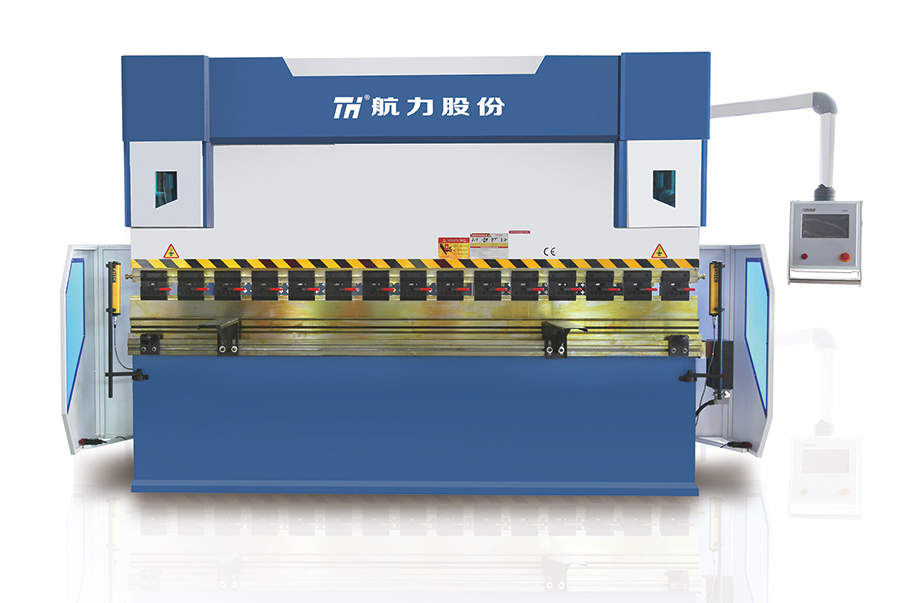

WC67K Torsion Shaft Synchronous CNC Bending Machine - WC67K hydraulic sheet metal bending machine

Details

The main machine adopts the WC67Y series bending machine.

It is equipped with a dedicated numerical control system from Delem (or Cybelec from Switzerland).

All servo motors are original imported. The control of the slider stroke (Y), rear stopper (X, R, Z), and main pressure is all automatically controlled by a computer

The rear stopper adopts ball screws and rolling guides, with high repeat positioning accuracy. The numerical control system can be equipped with high, medium and low-end products.

Parameter

Model	Nominal pressure (kn)	Working table length(mm)	Column spacing(mm)	Throat depth(mm)	Slide stroke(mm)	Maximum opening height(mm)	Motor Power(KW)	Dimensions(mm)
WC67K-40T/2500	400	2500	2000	200	100	250	4	2560×1250×1800
WC67K-63T/2500	630	2500	2000	250	100	350	5.5	2560×1650×2200
WC67K-63T/3200	630	3200	2500	250	100	350	5.5	3260×1680×2300
WC67K-100T/3200	1000	3200	2500	320	120	370	7.5	3260×1780×2350
WC67K-100T/4000	1000	4000	3200	320	120	370	7.5	4060×1800×2350
WC67K-160T/3200	1600	3200	2600	320	200	470	11	3260×1940×2600
WC67K-160T/4000	1600	4000	3200	320	200	470	11	4060×1960×2680
WC67K-200T/3200	2000	3200	2600	320	200	470	15	3260×1980×3100
WC67K-200T/4000	2000	4000	3200	320	200	470	15	4080×2050×3300
WC67K-250T/4000	2500	4000	3200	320	200	520	18.5	4080×2180×3450
WC67K-250T/6000	2500	6000	4800	320	250	560	18.5	6100×2280×3800
WC67K-300T/4000	3000	4000	3200	400	250	560	18.5	4100×2200×3500
WC67K-300T/6000	3000	6000	4800	400	250	560	18.5	6080×2350×3880
WC67K-350T/4000	3500	4000	3200	320	250	560	22	4100×2300×3800
WC67K-400T/5000	4000	5000	4000	400	250	560	30	5100×2400×3960
WC67K-500T/6000	5000	6000	4800	400	250	700	37	6100×2400×4200
